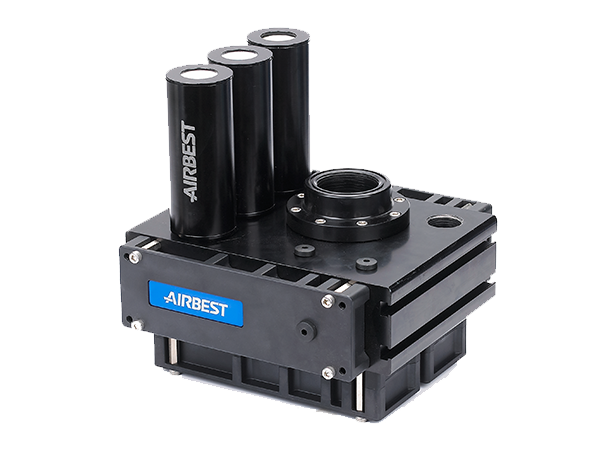

AM/AL/AH Series
Combined Type Multistage Vacuum Pump

Features

How to order

Technical parameters

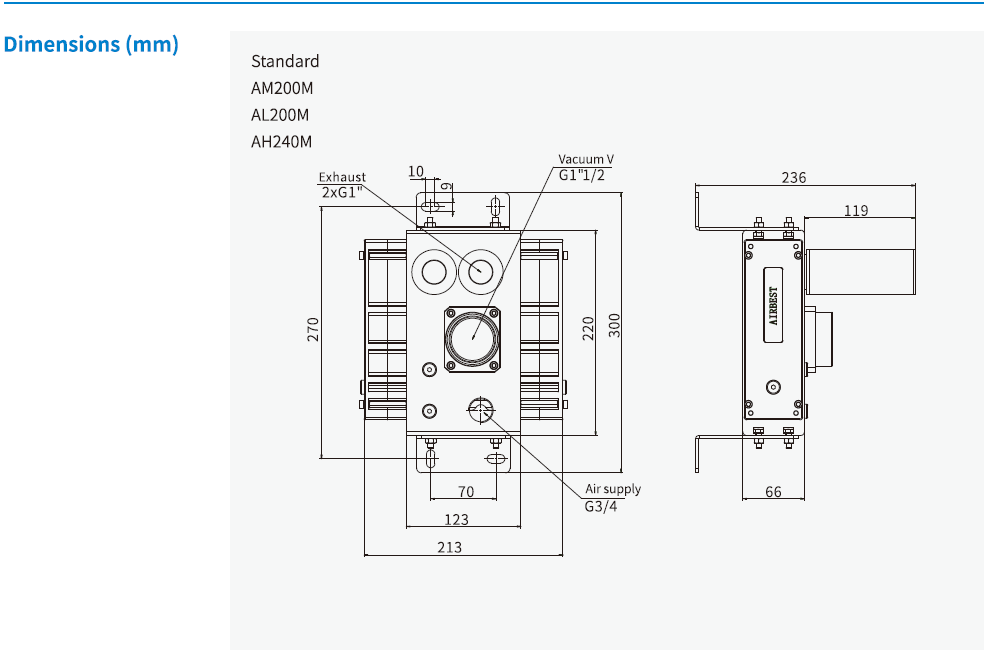

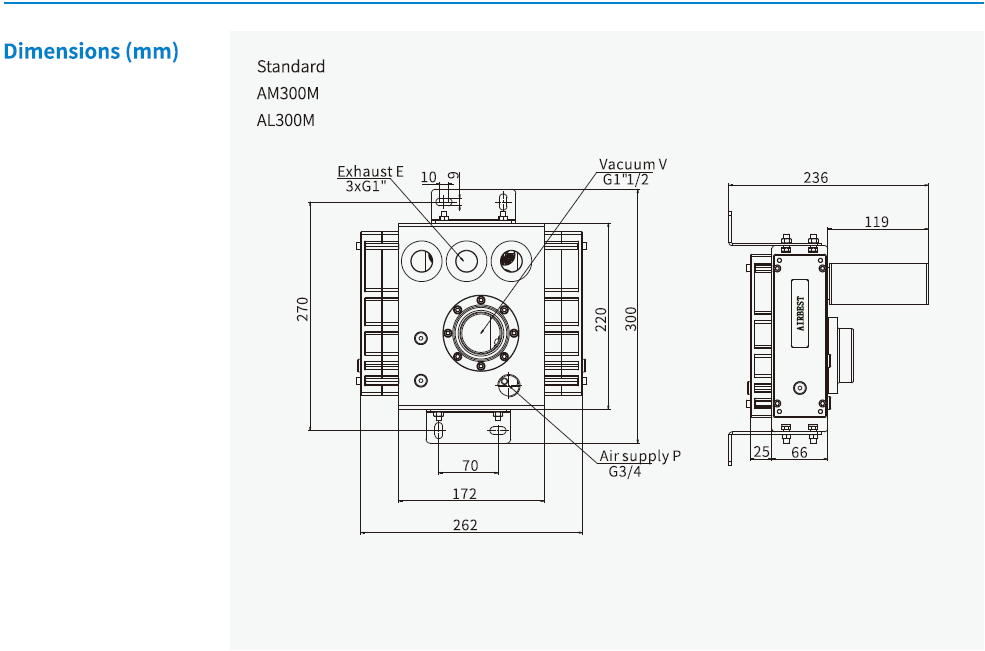

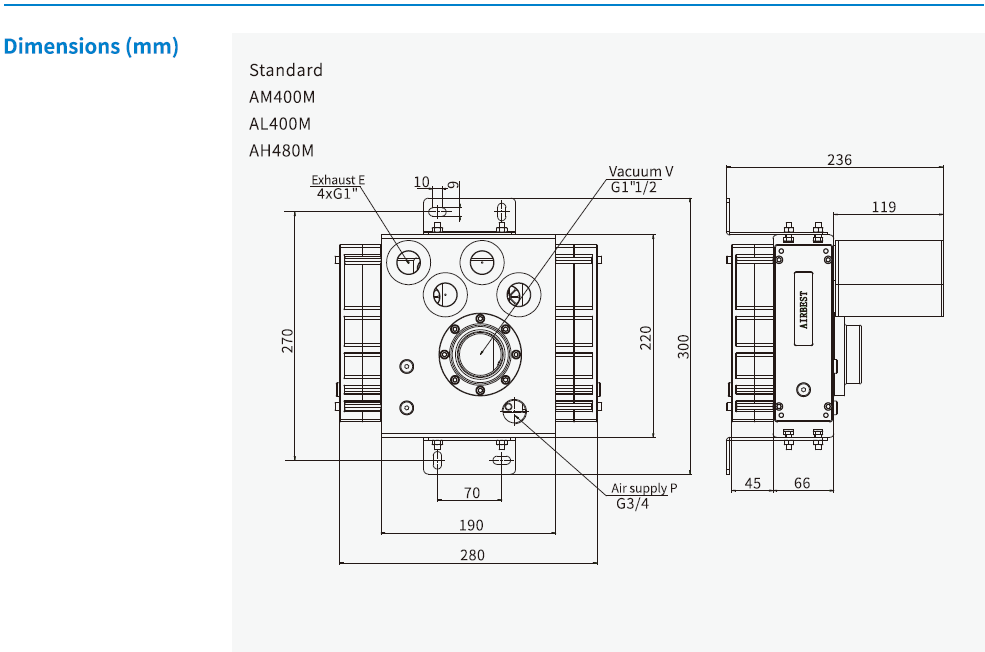

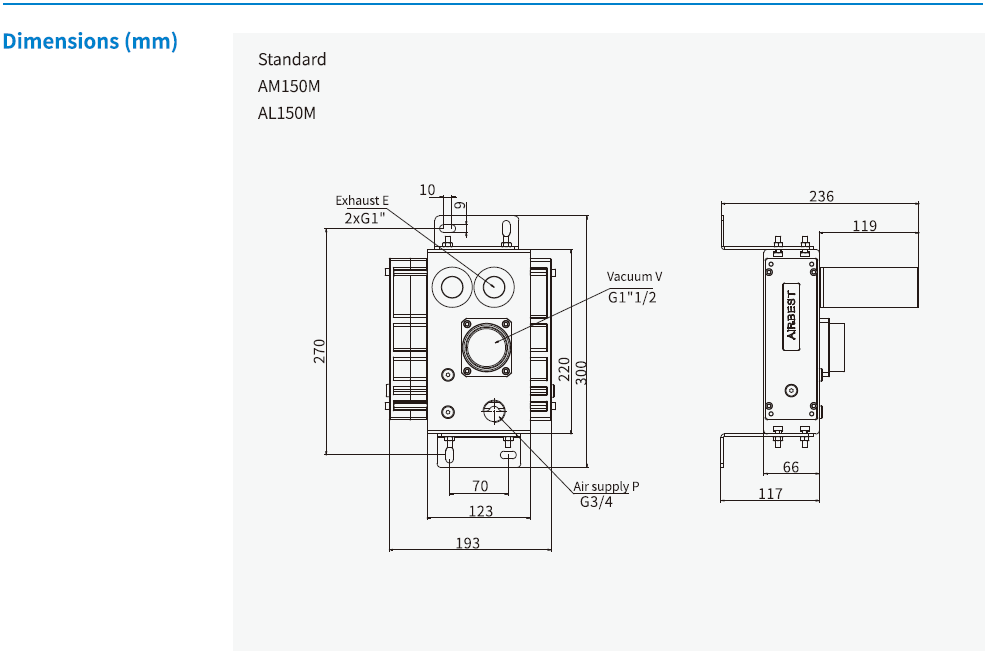

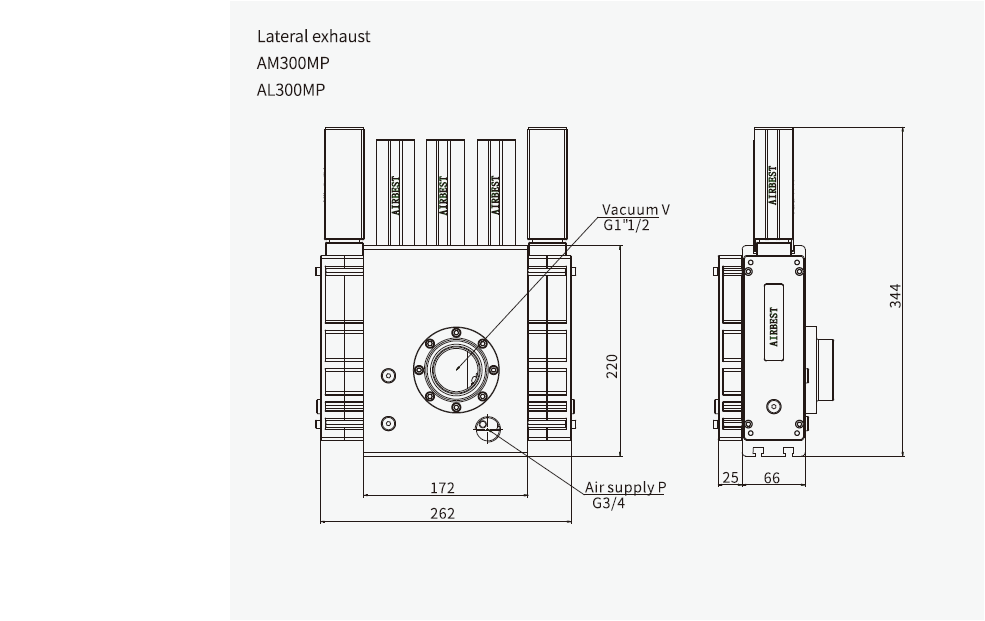

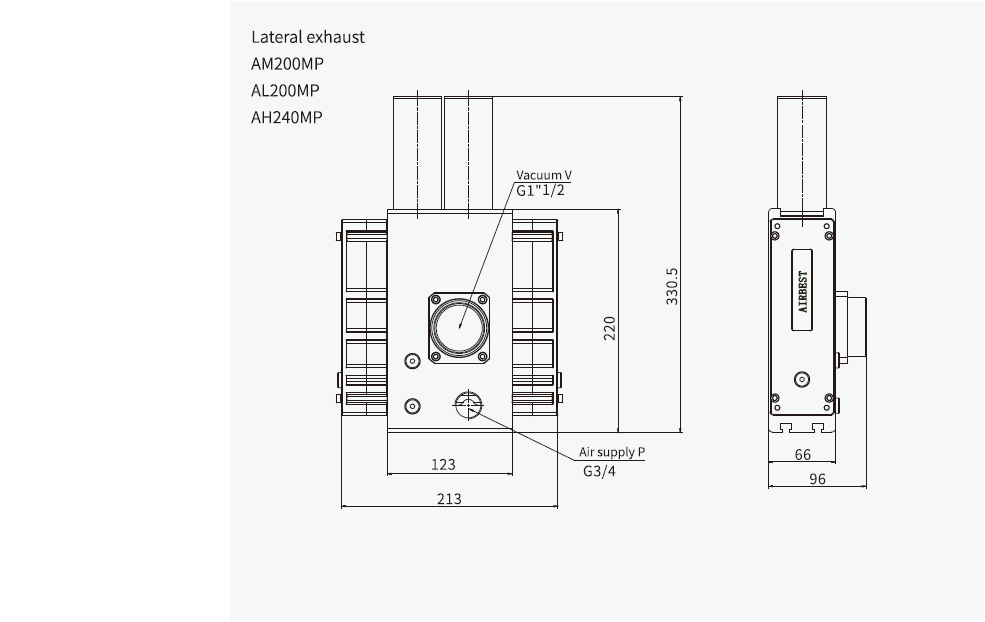

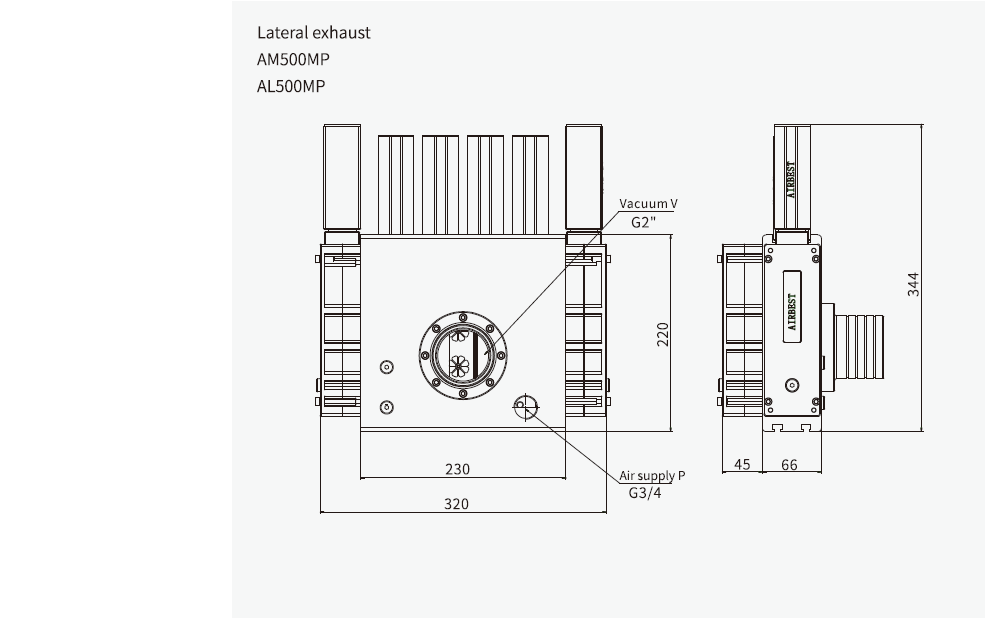

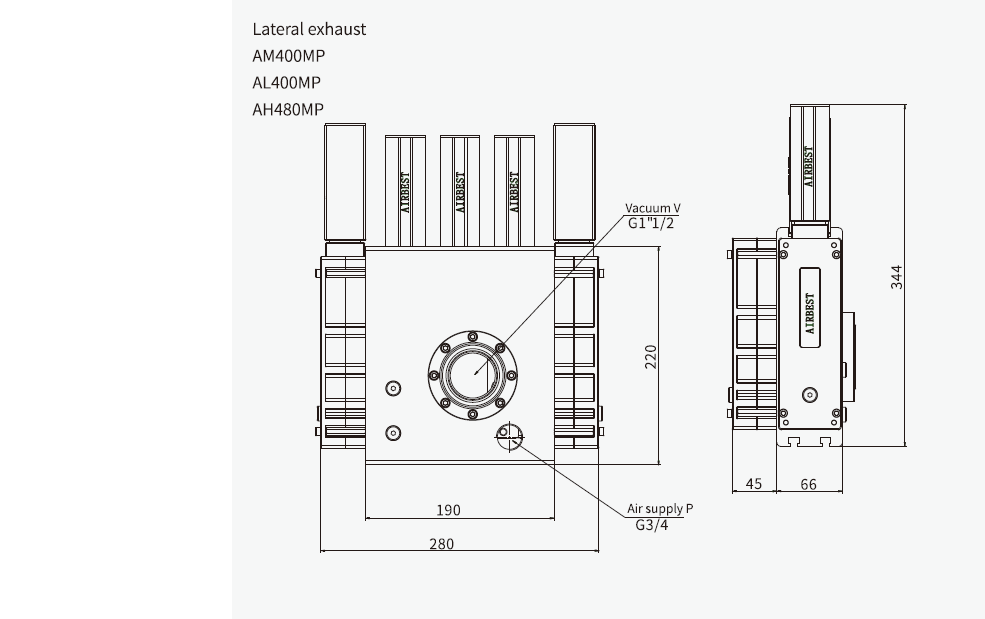

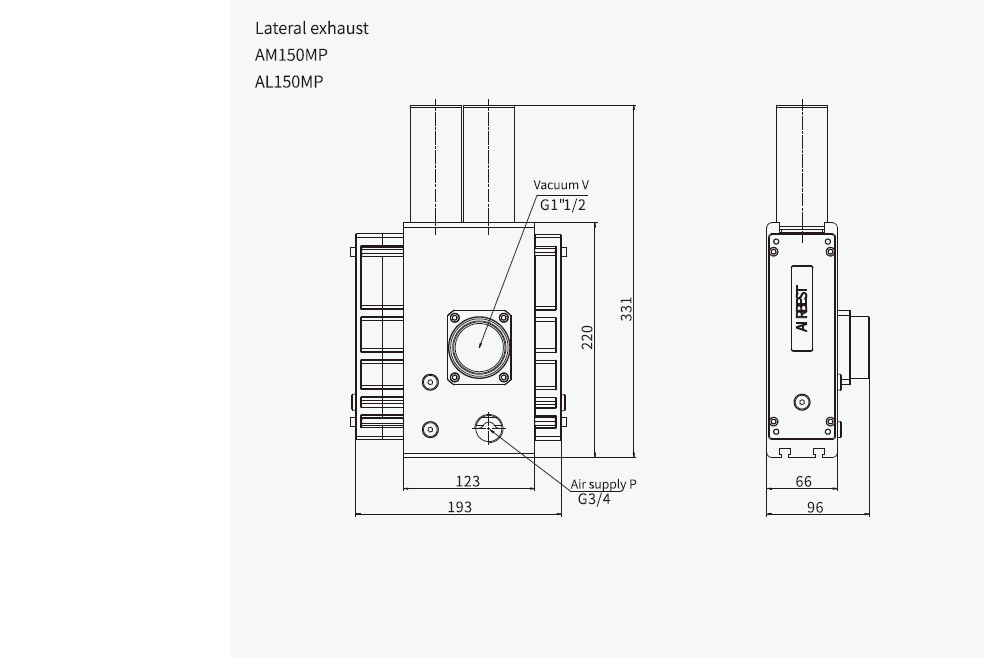

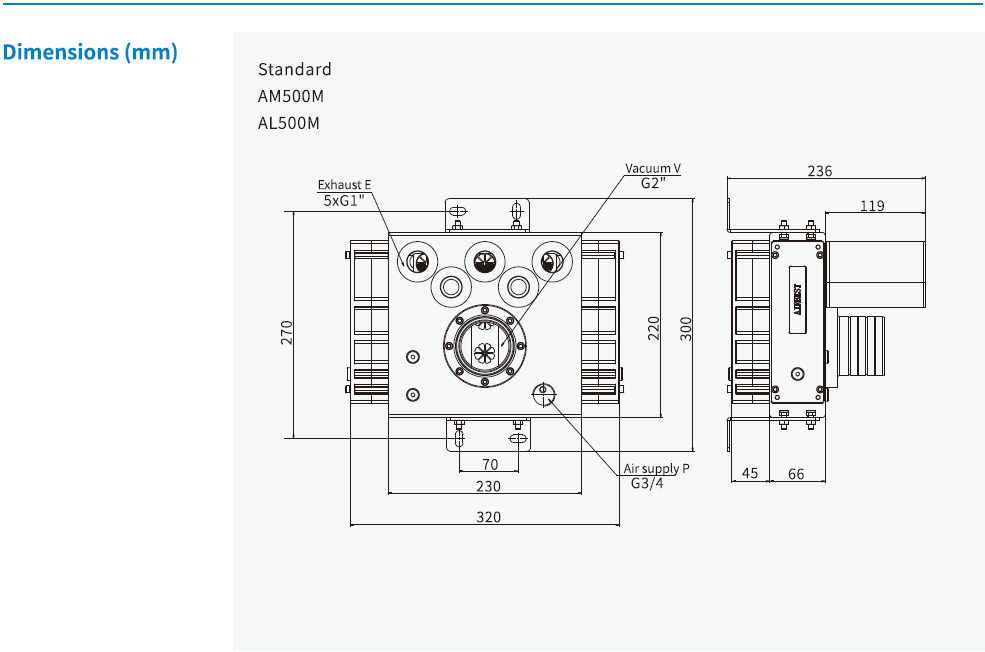

Dimensions (mm)

Download

Back

Features

◇ Large-flow vacuum pumps are suitable for vacuum system of high leakage and porous material and large vacuum circuit.
◇ AH combined type vacuum pump produces high vacuum level while maintaining good flow rate for short reaction time.

How to order
AM 200M P -N -A ① ② ③ ④ ⑤

① Series	② Specification	③ Exhaust type	④ Sealing	⑤ Non-return valve

AM - Universal type（-92kPa）	150M 200M 300M 400M 500M	Nil- Standard P- Lateral exhaust	N -NBR E -EPDM F -Fluorine rubber	Nil -Standard,without non-return valve A -With non-return valve
AL - Flow type（-81kPa）
AH - High vacuum level type（-100.8kPa）	240M 480M

Technical parameters

Model	Air supply pressure(bar)	Max. vacuum level (-kPa)	Max. Vacuum flow (NL/min)	Max.air consumption (NL/min)	Weight(g)	Noise level dB(A)	Recommended hose dia. (mm)
Model	Air supply pressure(bar)	Max. vacuum level (-kPa)	Max. Vacuum flow (NL/min)	Max.air consumption (NL/min)	Weight(g)	Noise level dB(A)	(Hose outer dia.) Air supply	(Wired hose dia.) Vacuum
AM150M	3.4	92	1550	720	3724	80	16	32
AM200M	3.4	92	1840	930	3892	81	16	32
AM300M	3.4	92	2750	1420	5525	81	16	45
AM400M	3.4	92	3290	1680	6447	81	16	45
AM500M	3.4	92	3740	2440	7929	82	16	60
AM150M	6	89	1880	1120	3724	80	16	32
AM200M	6	89	2200	1460	3892	81	16	32
AM300M	6	89	3150	2200	5525	81	16	45
AM400M	6	89	3710	2790	6447	81	16	60
AM500M	6	89	4570	3520	7929	82	16	60

AL150M	6	81	1660	650	3724	80	16	32
AL200M	6	81	1950	830	3892	81	16	32
AL300M	6	81	2840	1240	5525	81	21	45
AL400M		81	3340	1650	6447	81	21	45
AL500M	6	81	3970	2100	7929	82	16	60
AH240M	6	100.5	1050	960	3892	81	16	25
AH480M	6	100.5	2040	1860	6447	81	16	32

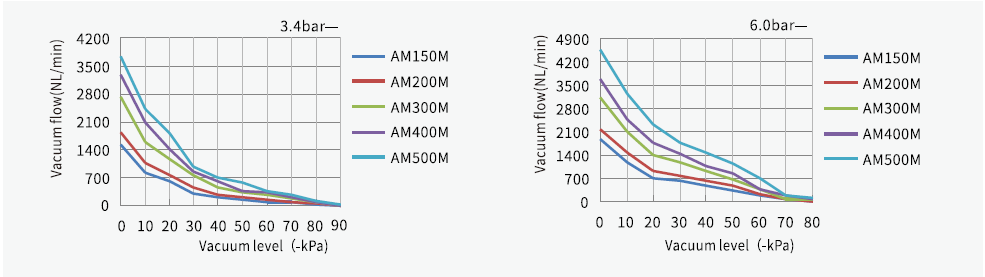

Vacuum flow (NL/min) at different vacuum levels (-kPa)
Model	Air supply pressure(bar)	Air consumption (NL/min)	0	10	20	30	40	50	60	70	80	90	Max. vacuum level (-kPa)
AM150M	3.4	720	1550	840	610	315	205	150	95	80	36	205	92
AM200M	3.4	930	1840	1090	770	470	280	210	155	95	50	4	92
AM300M	3.4	1420	2750	1610	1160	760	470	325	270	185	80	7.5	92
AM400M	3.4	1680	3290	2080	1420	870	620	372	335	215	100	11.5	92
AM500M	3.4	2440	3,740	2420	1800	970	710	590	360	270	130	15.5	92
AM150M	6	1120	1,880	1210	730	640	490	340	200	75	25	-	89
AM200M	6	1460	2200	1490	930	800	650	490	245	85	11	-	89
AM300M	6	2290	3150	2100	1410	1180	930	660	365	105	75	-	89
AM400M	6	2790	3710	2480	1800	1450	1100	870	370	195	80	-	89
AM500M	6	3250	4570	3240	2330	1800	1470	1140	700	205	115	-	89

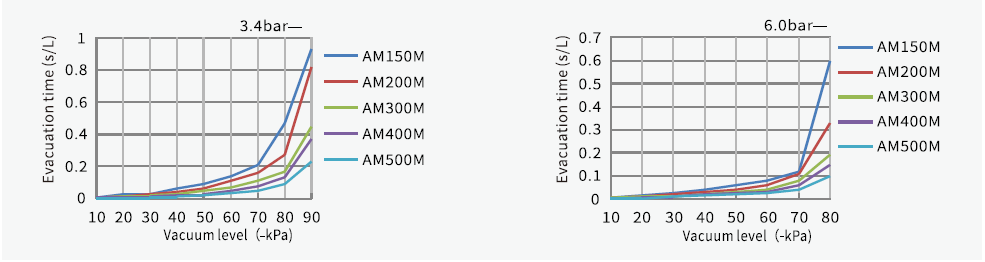

Evacuation time (S/L) to reach different vacuum levels(-kPa)
Model	Air supply pressure(bar)	Air consumption (NL/min)	10	20	30	40	50	60	70	80	90	Max. vacuum level (-kPa)
AM150M	3.4	720	0.009	0.02	0.03	0.06	0.09	0.14	0.21	0.47	0.93	92
AM200M	3.4	930	0.006	0.016	0.28	0.04	0.06	0.11	0.16	0.27	0.82	92
AM300M	3.4	1420	0.004	0.014	0.02	0.03	0.05	0.07	0.11	0.17	0.45	92
AM400M	3.4	1680	0.004	0.01	0.015	0.023	0.03	0.05	0.08	0.13	0.37	92
AM500M	3.4	2440	0.002	0.005	0.008	0.01	0.022	0.04	0.06	0.1	0.25	92
AM150M	3.4	1120	0.007	0.017	0.026	0.04	0.06	0.08	0.12	0.6	-	89
AM200M	6	1460	0.005	0.012	0.022	0.03	0.04	0.06	0.11	0.33	-	89
AM300M	6	2290	0.004	0.01	0.013	0.023	0.03	0.04	0.08	0.19	-	89
AM400M	6	2790	0.003	0.008	0.012	0.02	0.025	0.03	0.06	0.15	-	89
AM500M	6	3250	0.002	0.005	0.008	0.015	0.02	0.027	0.05	0.12	-	89

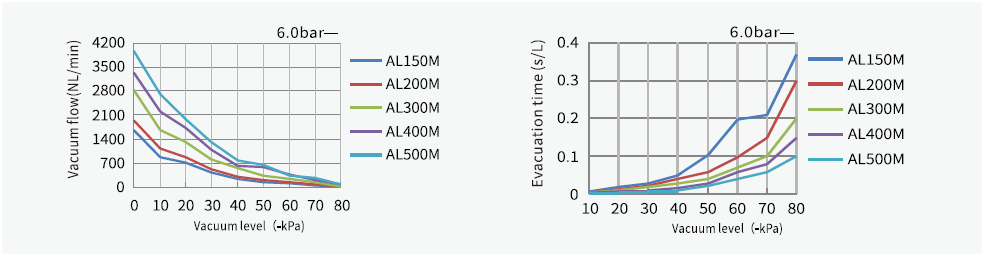

Vacuum flow (NL/min) at different vacuum levels (-kPa)
Model	Air supply pressure(bar)	Air consumption (NL/min)	0	10	20	30	40	50	60	70	Max. vacuum level (-kPa)
AL150M	6	650	1660	870	720	450	240	160	115	70	81
AL200M	6	830	1950	1140	870	520	305	230	160	105	81
AL300M	6	1240	2840	1660	1330	810	580	360	265	155	81
AL400M	6	1650	3340	2200	1730	1110	630	590	370	225	81
AL500M	6	2100	3,970	2710	1990	1320	790	660	360	270	81

Evacuation time (S/L) to reach different vacuum levels(-kPa)
Model	Air supply pressure(bar)	Air consumption (NL/min)	10	20	30	40	50	60	70	80	Max. vacuum level (-kPa)
AL150M	6	650	0.007	0.019	0.028	0.051	0.105	0.198	0.21	0.37	81
AL200M	6	830	0.005	0.013	0.023	0.04	0.06	0.98	0.15	0.3	81
AL300M	6	1240	0.004	0.011	0.018	0.03	0.04	0.07	0.1	0.2	81
AL400M	6	1650	0.003	0.008	0.01	0.15	0.03	0.06	0.08	0.15	81
AL500M	6	2100	0.002	0.005	0.008	0.01	0.022	0.04	0.06	0.1	81

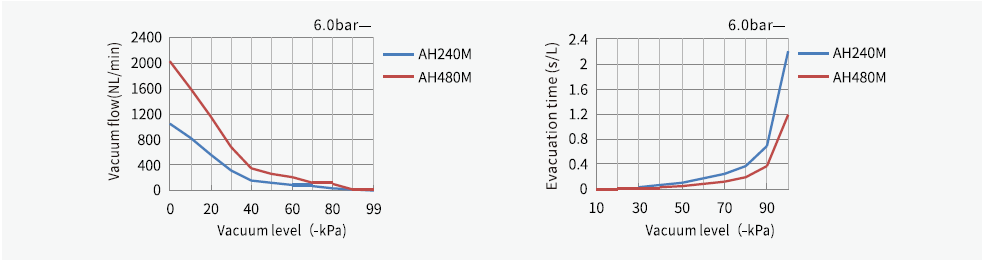

Vacuum flow (NL/min) at different vacuum levels (-kPa)
Model	Air supply pressure(bar)	Air consumption (NL/min)	0	10	20	30	40	50	60	70	80	90	95	99	Max. vacuum level (-kPa)
AH240M	6	960	1050	820	560	310	155	125	85	70	39	20	8	1.3	1.3
AH480M	6	1860	2040	1600	1150	690	345	270	210	120	110	19	15	2.5	100.8

Evacuation time (S/L) to reach different vacuum levels(-kPa)
Model	Air supply pressure(bar)	Air consumption (NL/min)	10	20	30	40	50	60	70	80	90	95	99	Max. vacuum level (-kPa)
AH40	6	960	0.006	0.014	0.03	0.06	0.11	0.17	0.25	0.38	0.7	1.1	2.2	100.5
AH120	6	1860	0.004	0.01	0.02	0.03	0.05	0.08	0.13	0.2	0.37	0.55	0.12	100.5
